Chinook Tear Down Cases
PRODUCT #: 75246003 and 75246004
Case Construction:
- ATA Plus Materials:
- Honeycomb plastic
- Aluminum Frame Material
- Tongue and groove aluminum extrusion
- Standard steel corners
Hardware and Additional Features:
- Handles: recessed, black powder coated spring-loaded handles with rubber bails
- Latches/clamps: recessed auto-tension clamps
- Hinges: piano hinge
- Locking: hasp and staple
- Interior: custom polyethylene foam inserts
- Color: black panels and mill finish extrusion
- Casters: removable/recessed casters
- Feet: steel stacking feet
- Additional: custom stencils
Contact Us or Call 800-428-2273 for Pricing
Spec Sheet
User Manual (Contact Us)
The Skydyne Company, in conjunction with Chinook operators and maintenance personnel, has developed a two case system to aid in the tear down and deployment procedure of the CH/MH-47 Helicopter. Skydyne Teardown Cases are currently in use by numerous aviation battalions and have been proven on countless deployments.

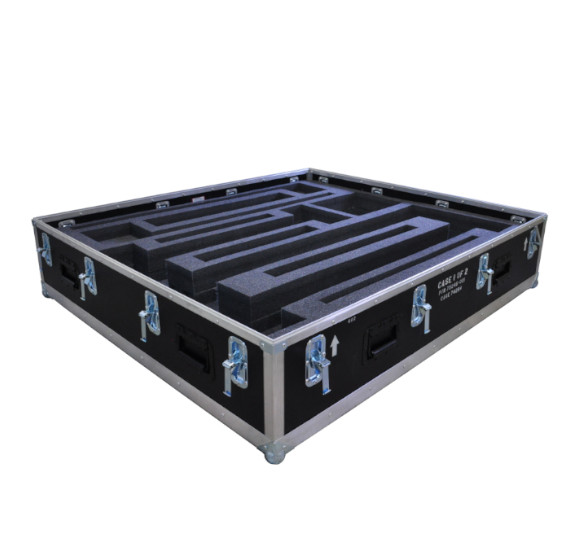

Case 1 of 2 - PN: 75246003 / NSN: 8145-01-603-7666
Outside Dimensions: 56.75" W x 50" L x 14.50" H
Weight: 118 lbs
Foam Insert designed specifically to hold:
- #1 AFT Connecting Link & Bell Crank 41"
- #2 AFT Connecting Link & Bell Crank 37"
- #1 Drive Shaft
- #2 Drive Shaft
- #9 Drive Shaft
- #1 FWD Connecting Link 38 1/2"
- #2 FWD Connecting Link 32"
- C-Box Fan
- C-Box Fan Drive Shaft

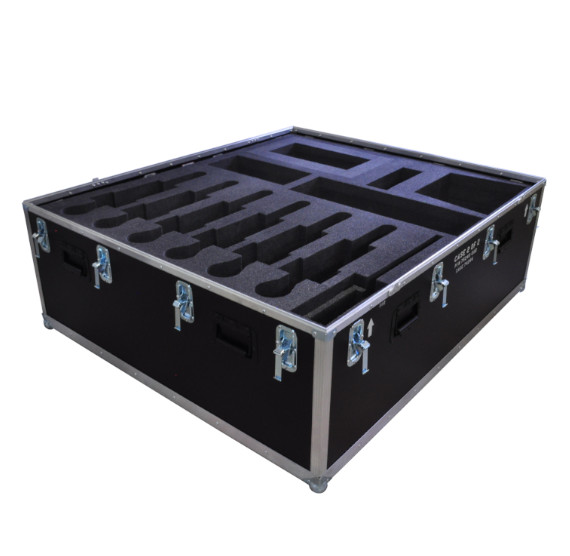

Case 2 of 2 - PN: 75246004 / NSN: 8145-01-603-7661
Outside Dimensions: 56.75" W x 50" L x 21.75" H
Weight: 156 lbs
Foam Insert designed specifically to hold:
- #1 Cargo Hook
- #2 Cargo Hook
- Vorils Antenna
- VHF Lower Antenna
- FM Homing Antenna
- Lower ARC 210 Antenna
- C-Box Fan Shroud
- Dampener (6)
